Deep Hole Drilling Machine
3-4 axes solution for blocks, mold inserts and plates.
The IMSA deep hole drilling machine MF1200D can also be used to drill centered and off-center deep holes in cylindrical parts.
Drilling depth in single operation max. 1200 mm. Tool: gun drill.
The deep drilling operation with gun drill tools on a specific machine as MF1200D is much more economical than drilling on a non-specific machine.
Straight drilling for the machine in 3-axis basic version with fixed table (table load 4000 kg);

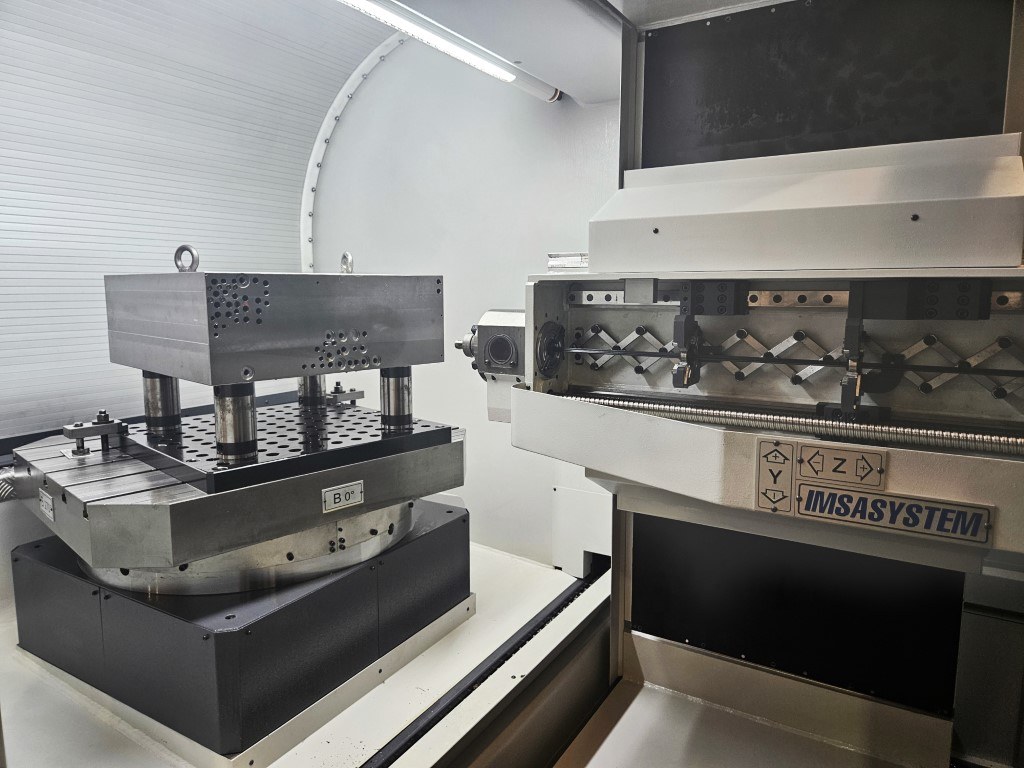

Straight and angled drilling for the 4-axis version equipped with optional rotary table (load 4000 kg).
Temperature, pressure and oil cleanliness are fundamental parameters that ensure continuous trouble-free gun drilling operations. That’s why our MF1200D is equipped with the best solutions that can automatically manage those three factors to the most suitable value. MF1200D is a compact yet complete machine.

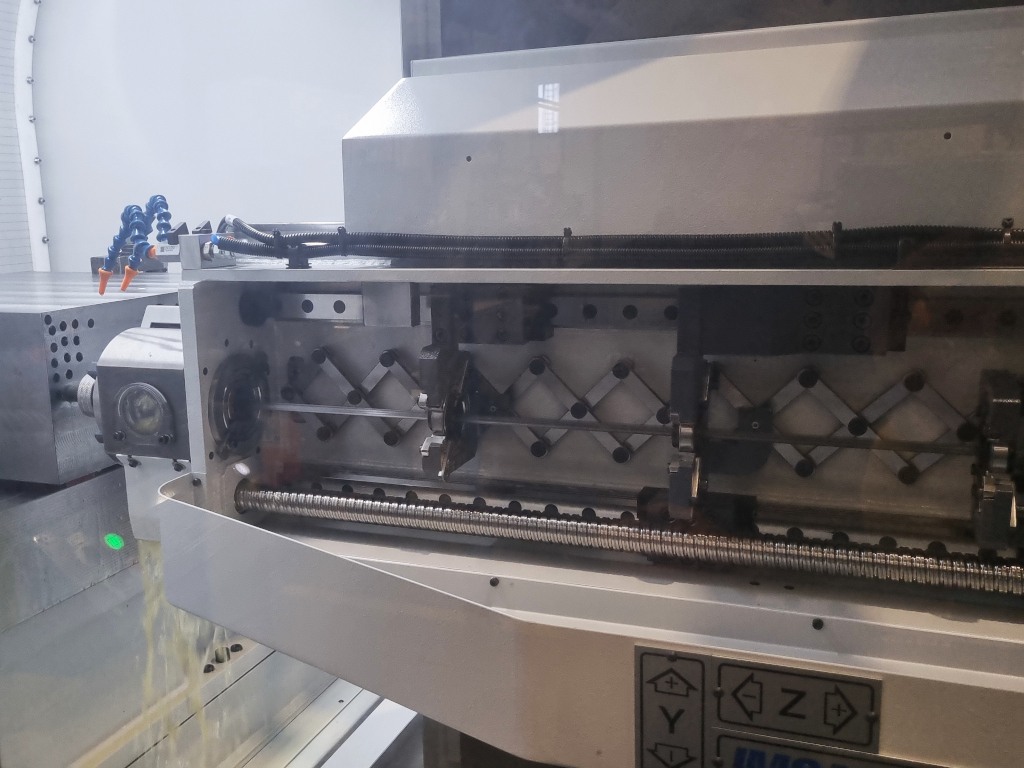

Reliable and safe process: the structure rigidity of our gantry solution -rated as 16 times more rigid than in the bottom-guided traditional structure- combined with special IMSA functions for the checking of effort values during drilling, result in top-level reliability and enable long unattended machining.

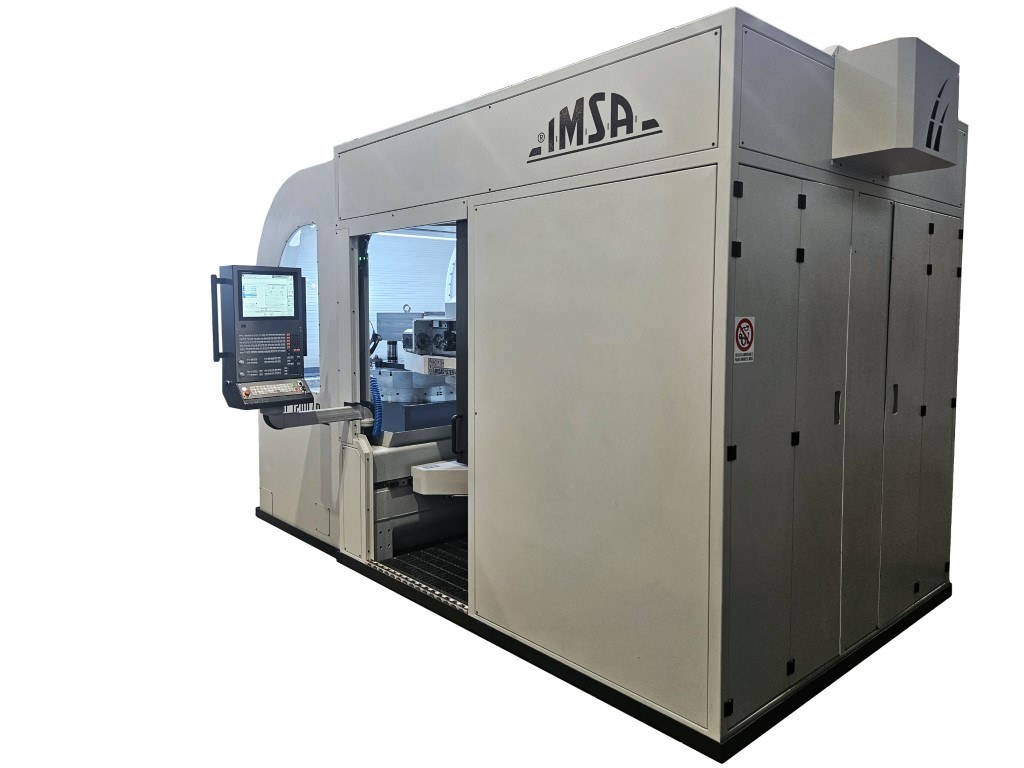

This deep hole drilling machine is conceived with a “shell-like” structure. That is, the machine self-supporting structure integrates table and gantry column, and requires no foundations.

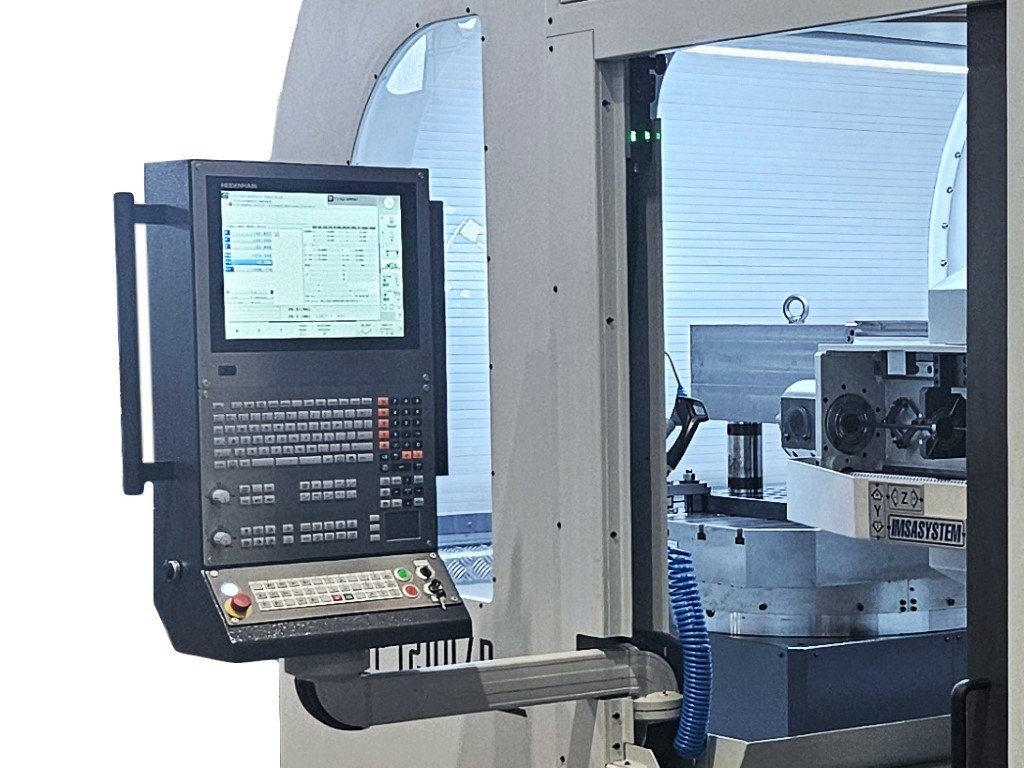

Easy loading with hall crane from top as well as by forklift from machine front, thanks to the front door leaving spacious access to the machine table. Good visibility of table and workpiece, thanks to the wide transparent windows on the operator side.
MF1200D is completely enclosed and placed on floor pans, guaranteeing area cleanliness as well as oil tightness.
